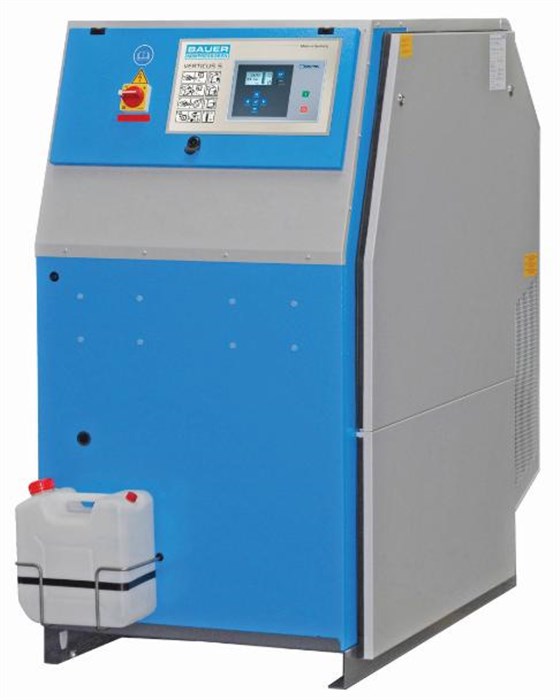

Super Silent Version:

静音机型

Length 长	x	Width 宽	x	Height 高	WeightAppro. 重量约
1480 mm	x	830 mm	x	1515 mm	560 kg

Technical Data for Compressor Block:

压缩机主机技术参数：

Medium : 压缩介质	Air
Ambient Temperature : 环境温度	+5 to +45°C
Nominal Pressure max. : 公称压力	365 bar adjusted by safety valve
Working Pressure : 工作压力	90-350 bar adjustable by final pressure sensor
Capacity : 流量	610 l/min
	Volume flow rate acc. to ISO 1217
Speed : 转速	1320 1/min
Number of Compression stages : 压缩级数	4
Number of Cylinders : 汽缸数	4
Stroke : 活塞冲程	50 mm
Mean piston speed : 平均活塞速度	2,2 m/s
Power consumption at max. pressure 最大压力时的功率消耗	12 kW
Drive : 驱动方式	V-belt
Cooling Airflow, min. required approx. 所需的最少冷却空气量	5400 m³/h

Technical Data for Prime Mover:

驱动电机的技术参数：

Type : 型号	three phase electric motor
Power : 功率	15 kW
Speed : 转速	2850 1/min
Enclosure : 防护等级	IP55
Frequency : 频率	50 Hz

COMPRESSORBLOCK

·压缩机主机

-Oil pump for forced-feed lubrication with oil filter

油泵带油滤器作注油式润滑

-Oil sump content: 6,0l

-油池容量：6.0升

-Micronic intake filter

进气滤芯

-Interstage coolers, air cooled after each stage

每级压缩后都设有冷却器

-Aftercooler, air cooled, outlet temp. approx. 10-15 °C above ambient temp.

压缩气体经过冷却器后的温度大约高于环境温度10-15°C

-Intermediate oil/water separators after each stage (exept 1st stage)

每级压缩后都设有中级水油分离器(除第一级外)

-Final oil/water separator

终级水油分离器

-Safety valves after each stage

每级压缩后都设有安全阀

-Final pressure safety valve

终级安全阀

-Pressure maintaining and check valve before compressor outlet

压缩机出口前设有压力维持阀及单向阀

-Final pressure gauge

终级安全阀

-First oil filling with final test

压缩机已加注润滑油并经过整机运行测试

-Oil change 2000 hours or 2 years whichever comes first

润滑油更换时间为运行2000小时或两年（二者以先到为准）

德国宝华风冷重栽高压压缩机主机（图片供参考）

·AUTOMATIC CONDENSATE DRAIN DEVICE

·冷凝水自动排放器

-Drains all oil/water separators during compressor operation

在压缩机运作过程中会排放所有水油分离器的冷凝水

-Draining interval is adjustable (standard: drains all 15min for 6sec)

可调整每次排放间隔时间(标准:每15分钟排放6秒)

-Unloaded start integrated (automatic drain during shut-down of the unit)

不负载起动(冷凝水会自动排放当压缩机关掉时)

-Condensate collecting tank 10l with silencer and filter for exhaust gas

排气设有消音器及过滤器的10升收集箱

·CONFIGURATION AND STYLE OF UNIT

·压缩机构造及款式

-Vertical arrangement of the unit on solid base frame

压缩机垂直安装在稳固底架上

-Shock absorbers for free standing installation

设有减震器的独立式设置

-Super Silent Housing with removable side doors

Reduction of noise level to approx.

72 dB(A) ± 2 dB(A) (ISO 3744) 7,5kW and higher

-可选择: 可移除的静音外壳边门,减少的程度噪音大约:

72 dB(A) ± 2 dB(A) (ISO 3744) 7,5kW 或更高

-Control panel and display integrated in compressor housing

仪表板及监控原件装在压缩机外壳上

-Electrical connection: Cable length 5m;

电线连接：5米电线

-High pressure outlet: fitting 8S for pipe ?8mm

高压出口：8mm管道8S连接

-Colour颜色:Compressor block压缩机主机: silver银色
Base frame 底架: RAL 7024 graphite grey石墨灰色

Compressor housing压缩机外壳: RAL 9006 white aluminium/cyan铝白色/蓝色

Pressure vessels 压力容器(i.a.): RAL 7024 graphite grey 石墨灰色

PURIFICATION SYSTEM P 61 (Integration in the compressor housing)

P61过滤系统(集成于压缩机内)

Scope of delivery:

供货范围

Check valve

止回阀

Bleed valve with pressure gauge

带有压力表的排出阀

1x Filterhousing with longlife-filter cartridge 20“

1个带有高效滤芯20的滤筒

Pressure maintaining- and check valve

保压阀和止回阀

Key for filter housing

用于滤筒的专门工具

Airquality:

气体质量

Values refer to ambient temperature: 20°C 参考的环境温度：20度		Quality class according to ISO8573-1:2010 质量等级根据ISO8573-1:2010
Pressure dew point (at 90bar - 500bar): 压力露点（在90巴-500巴之间）	-20°C
Atmospheric dew point acc. to working pressure 从工作压力释放到常压下的水含量： at 90bar: at 300bar: at 500bar:	- 62°C - 69°C - 71°C
Water content after expansion from working pressure: 从工作压力释放到常压下的水含量： 90bar: 300bar: 500bar:	< 10 mg/Nm³ (14ppmV) < 3,2 mg/Nm³ (4,3ppmV) < 2,4 mg/Nm³ (3,2ppmV)
Oil content : 含油量：	< 0,1mg/Nm³

SECURUS AIR PURITY CONTROL DEVICE

SECURUS 滤芯饱和度监控装置

The SECURUS system controls continously the saturation

of the filter cartridge by measuring the air humidity in the

molecular sieve layer and gives a warning signal before

a cartridge change is necessary.

SECURUS系统可以通过测量分子筛湿度来持续监控

滤芯饱和程度；在滤芯真正需要更换之前，SECURUS

会给出信号。

At 100% exploitation of filter cartridge capacity the

SECURUS stops the compressor unit automatically.

在滤芯100%使用完之前，SECURUS会使压缩机

自动停机。

The following operating conditions are indicated on the display:

以下运行工况会在显示器上体现出来：

GREEN light on: cartridge is okay

绿灯亮：滤芯正常

YELLOW light flashing: pre-warning of cartridge saturation

黄灯闪烁：滤芯饱和前的预警

RED light flashing: cartridge is saturated compressor is switched off.

红灯闪烁：滤芯完全饱和，压缩机停止运转（需立即更换滤芯）。
